CRISTEC

CHARGER 12V/60A

CHARGER 12V/60A

Κανονική τιμή €1.227,60
Κανονική τιμή Τιμή έκπτωσης €1.227,60
Έκπτωση Εξαντλήθηκε
Ο φόρος συμπεριλαμβάνεται. Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.

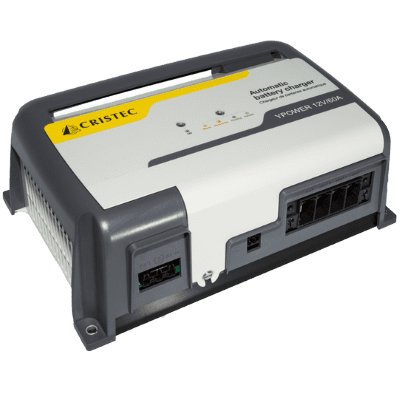

CRISTEC YPOWER PLUS BATTERY CHARGER 12V / 60A

Specifications:



Model

12V / 60A

Recommended battery bank (Pb)

500 – 700Ah

Input current consumption 230/115VAC

4.4 / 8.7 A

Recommended power for a generator

1050 W

Total rated current (+/-7%)

Rated power

60A / 855W

Dimensions (length, height, depth)

289 x 195 x 106 mm

Weight

3.7 kg


About Cristec YPower Chargers


With more than 150,000 HF battery chargers installed worldwide, CRISTEC is proud to present its fifth generation of HF chargers:  YPOWER range.

Indeed, being robust, reliable and efficient, the latter will offer you professional use of quality and comfort of use thanks to its multi-output function.

YPOWER battery chargers are also compatible with a DC 144V (121V–169V) or a DC 288V (247V–346V) input network – see datasheet


SILENT OPERATING

CRISTEC is the only manufacturer to offer chargers with natural convection (without fan) up to 40A * included (* in 12V; 20A in 24V).

This specificity gives them totally silent operation and an optimized lifespan.

It is therefore possible to install them anywhere on board, including under a berth.

The more powerful models, 12V / 60A and 24V / 30A, have a controlled fan.

In other words, the fan will only be in operation at the very start of charging (Boost phase) and/or when the ambient temperature is high.


THERMAL PERFORMANCE

  • Rated charge up to +60°C with no derating
  • can be installed in an engine room
  • Model 12V/40A Ignition protected according to standards SAE J1171 and ISO8846


EASY CONNECTION

Quick, reliable and friendly mounting

AC & DC plug connectors included


5-STAGE CHARGING PROFILE

Boost : charges batteries to 80% of full charge
Absorption : slowly completes remaining charge to 100%
Floating : maintains battery charge
Automatic refresh : prevents sulphation and revitalizes batteries, selectable by internal switch
Reboost : new automatic Boost phase if batteries demand needs it.

Power-supply mode also available.

IU mode by inhibiting the BOOST using internal switch.


ADAPTATIVE CHARGE

Presence of a custom-made and simultaneous recharge of 3 battery banks, including one dedicated to the motor battery.

YPOWER chargers are compatible with all types of batteries:

  • Opened classic lead
  • Sealed, Gel or AGM
  • Spiral sealed
  • Lithium Iron Phosphate ( LiFePO4 ) with BMS


APPLICATIONS

YPOWER AC-DC battery chargers adapt to different markets and applications:

  • Professional marine : naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
  • Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
  • Mobile :
    • Emergency vehicles : firemen, ambulance, rescue, depollution, etc.
    • Recreational vehicles : motorhome, golf course, etc.
    • Special vehicles : surveillance, transport of animals, Van, public works etc.
  • Industry : automated cleaning, on-board camera, recognition robots, telecommunications, etc.
  • Wind-powered : landsites
  • Solar : isolated sites
