About YPOWER DC-DC BATTERY CHARGERS

YPOWER DC-DC chargers-converters have been designed to charge a 12, 24, 36 or 48V battery bank from a 12, 24, 36 or 48V network.

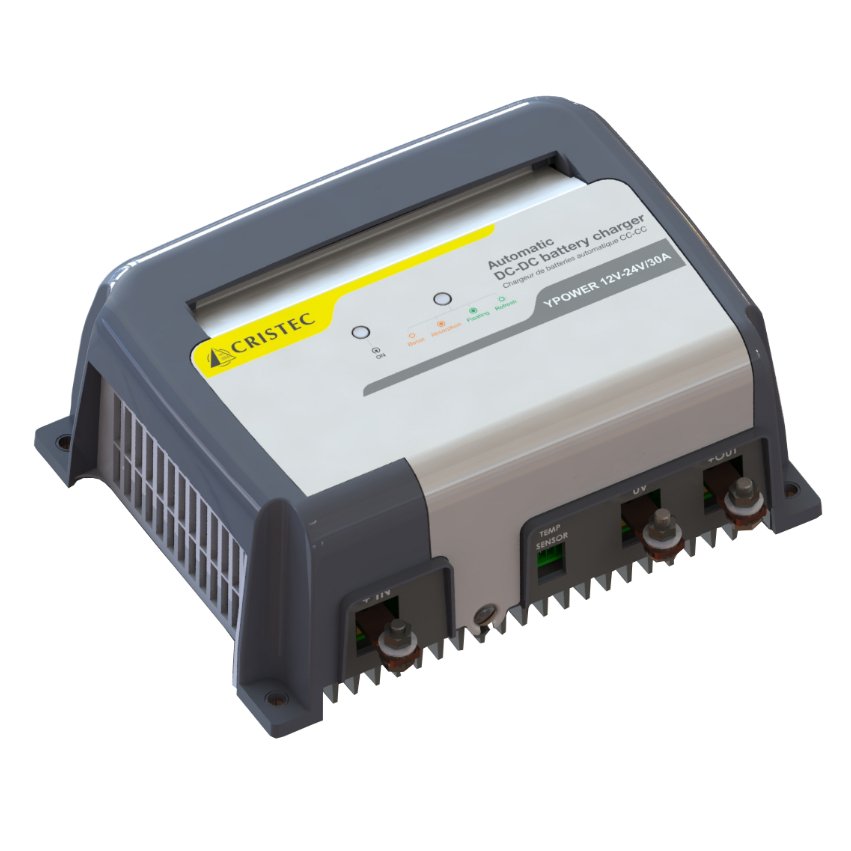

The most typical case of use is the 24V bow-thruster battery bank charge from the 12V onboard network (model YPO12-24/30).

They also allow a LiFePO4 battery to be recharged from a Lead battery connected to an alternator.

Thanks to their large scale of input and output voltages, they can be configured as a simple converter or as a battery charger.

In this case, the charging curve delivered is comparable to the one of a smart charger:
– 5 steps
– all types of batteries (wet & sealed Lead, Calcium Lead, gel, AGM, Lithium, etc.)

• Cooling is done naturally.
• Remote control can be done through a serial BUS-CAN interface.

MECHANICAL CHARACTERISTICS

• Input/output connection : with M6 terminals
• Indicator : 2 bicolour LEDs
• Casing : 4 x M5 external fixings for easy wall mounting
• Natural cooling (fanless)
• Protection factor : IP22
• Dimensions : 236 x 180 x 96 mm
• Weight : 2.2 kg

INPUT/OUTPUT CHARACTERISTICS

• Input voltage : 12 or 24 or 36 or 48VDC (from 10 to 64VDC)
• Output voltage : 12 or 24 or 36 or 48VDC
• Nominal power : from 570 to 860W (depending on model)
• Max. output current : from 10 to 60A at nominal voltage (depending on model)
• Isolation Input/Output : no as 0V is common
• 5-step charging curve : Boost, Absorption, Floating, Refresh & Reboost
• Battery type selection through push-button or communication
• Efficiency : 96% typical
• Ripple : < 2% (at nominal conditions)
• Electronic limitation of the input current
• Remote control : serial CAN-BUS interface

APPLICATIONS

YPOWER DC-DC  battery chargers adapt to different markets and applications:

• Professional marine : naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse and beacon.
• Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
• Mobile :
• Emergency vehicles: firemen, ambulance, rescue, depollution, etc.
• Recreational vehicles: motorhome, golf course, etc.
• Special vehicles: surveillance, transport of animals, Van, public works etc.
• Industry : automated cleaning, on-board camera, recognition robots, telecommunications, etc.
• Wind-powered : land sites
• Solar : isolated sites
